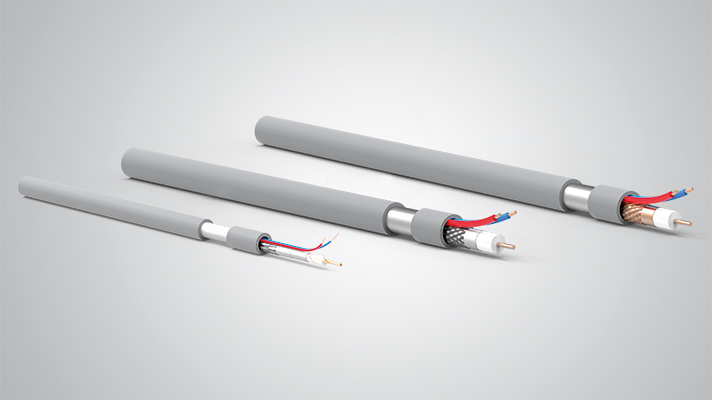

CCTV cables are composit cables which provide simultaneous transmission of image, voice, alarm and power signals in application of closed circuit camera systems.
| Cable Construction | |
| Coaxial | 75OHM Coaxial Cables From mini Coax to RG 11 series |
| Inner Conductor | Stranded or Solid Annealed Copper |
| Insulation | FPE or Solid PE |
| 1.Screen | Al-Pes or Cu-Pes 100% |
| Braid | Braid with Aluminium or Copper Wires |
| Outer Sheath | PVC Compound |
| Signal and Control Cables | |
| Conductor | Electrolytic Stranded Annealed Copper as per Class 5, IEC 228/DIN VDE 0295/TS EN 60228 |
| Insulation | PVC Compound |
| Insulation Colour | Suitable Colour with DIN 47100 Standard |
| General Screen | Al-Pes Tape 100% |
| Outer Sheath | PVC Compound |
| Colour of Sheath | RAL 7001 Grey |
| Standard Length | 100 – 250 – 500 – 1000 m |
| Electrical Parameters | |
| Insulation Resistane | >2000 MOHM KM |
| Capacitance | 57.00pf/m |
| Velocity | 0,82 |
| Working Voltage | 0,14 mm²…0,25 mm² = 250 V ~ / 0,34 mm²…1,5 mm² = 500 V ~ |
| Test Voltage | -0,14 mm²…0,25 mm² = 1200 V ~/ 0,34 mm²…1,5 mm² = 2500 V ~ |
| Min.Bending Radius | 10 x D |
| Working Tempeture | -30°C +70°C |
| Impedance | 75 ± 3 OHM |
| Cross Section | ||||
| Cross Section | Sheath Diameter (mm) | Copper Weight (kg/km) | Cable Weight (kg/km) | Standard Length |
| 1 Coax + 2×0,22 mm² | 5,2 | 11 | 32 | 100 / 250 / 500 / 1000 |
| 1 Coax + 2×0,50 mm² | 5,8 | 15 | 42 | 100 / 250 / 500 / 1000 |
| RG 59/U-4 Coax + 2×0,50 mm² | 8,7 | 20 | 75 | 500 / 1000 |
| RG 59/U-6 Coax + 2×0,50 mm² | 8,8 | 28 | 76 | 500 / 1000 |
| RG 6/U-4 Coax + 2×0,75 mm² | 9,2 | 26 | 94 | 500 / 1000 |
| RG 6/U-6 Coax + 2×0,75 mm² | 9,3 | 34 | 95 | 500 / 1000 |
