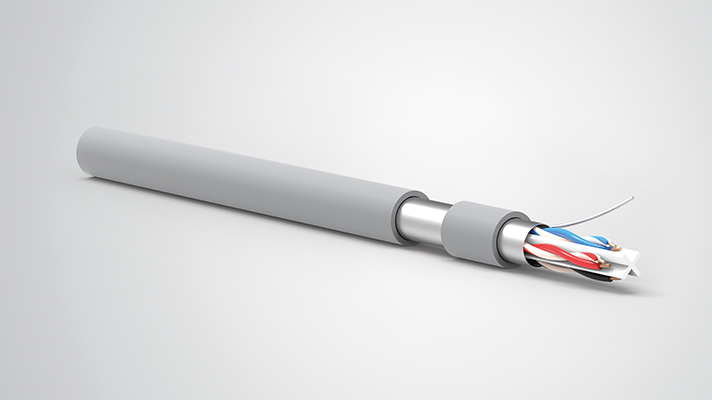

These cables used in data transmission systems that work up to 200 Mbit/s. These cables are particularly preferred in the offices, buildings where many terminals are found. The outer sheath material of CAT6 FTP cable is PVC for indoor application; black PE is for outdoor application and HFFR is free flame retardant compound which has low smoke density and no toxic/corrosive gases during a fire.
| Cable Construction | |
| Inner Conductor | Electrolytic Copper |
| Insulation | 1,00 Solid PE |
| Insulation Colour | IEC 708-1 |
| Lay-up | Cores twisted together in pairs and all pairs |
| Outer Sheath | PVC Grey (EN 50290-2, HD 21.1.S4, VDE 0281TM1) PE Black (EN 50290 -2 -24) HFFR Grey (EN 50290-2, VDE 0207, HD624.7 S1 HM2) |
| Sheath Diameter | 7.00 mm |
| Screen | Al-Pes Foil with 0,50mm SnCu Ground Wire |
| Copper Weight | IEC 189, IEC 708, EIA/TIA 568 |
| Copper Weight (kg/km) | 16 |
| Cable Weightı (kg/km) | 44 |
| Standart Packing | 305 – 500 – 1000 m |
| Electrical Parameters | |
| Conductor Resistance | 72 OHM/KM |
| Insulation Resistance | >5000 MOHM KM |
| Resistance Unbalanced | 5% (500V) |
| Test Voltage | 1,2 kv |
| Min.Bending Radius | 8 x D |
| Capacitance | 56 pf/m |
| Working Voltage | 250 V |
| Working Tempeture | -20°C + 60°C |
| Velocity | 0,67 |
| Electical Measurements | |||
| Frequency (MHz) | Max. Attenuations (dB/100m) | Min. Near and Crosstalk (dB Min.) | Min. Return Loss (dB Min.) |
| 1 | 2,1 | 72 | 23 |
| 4 | 3,8 | 63 | 23 |
| 10 | 5,9 | 57 | 25 |
| 16 | 7,6 | 54 | 25 |
| 20 | 8,5 | 53 | 25 |
| 31 | 10,8 | 50 | 23,6 |
| 62 | 15,5 | 45 | 21,5 |
| 100 | 15,5 | 42 | 20,1 |
| 155 | 21,1 | 41 | 19 |
